BB01: European-spec without catalyst (200 hp), 06/88 through 09/88 & 04/1989 through 06/1989
BB05: European-spec with catalyst (195 hp), 07/1988 through 09/1988 & 03/1989 through 06/1989
BB05: European-spec with catalyst (215 hp), 03/1990 through 06/1991
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
| History |
|
What makes the E30 M3 convertible unique?
The E30 M3 convertible combines the drivetrain, chassis and much of the bodywork from the E30 M3 sedan with the open-top body style of the E30 3 Seres convertible. |
|
Where was the E30 M3 convertible first introduced?
A six-cylinder E30 3 Series convertible prototype with M3 bodywork and all-wheel-drive was displayed at the 1985 Frankfurt motor show. The production version, with the four-cylinder S14 engine and rear-wheel drive chassis, did not appear until the middle of 1988. |
|
Where was the E30 M3 convertible built?
Because of its low production volume, the E30 M3 convertible was assembled by hand at BMW M's Garching facility, much like the E28 and E34 M5s. Bodies were supplied from the normal E30 assembly lines, then fitted at Garching with the special drivetrain, chassis and interior. |
|
|
|
| Production Data |
|
How many versions of the E30 M3 convertible were there?
There were three versions of the E30 M3 convertible, all in left-hand drive and all built to European specification. Cars produced in 1988 and 1989 use the standard 2.3-liter S14 engine in either non-catalyst (200 hp) or catalyst (195 hp) form. After nearly a year out of production, a second batch of catalyst-equipped cars was assembled starting in March, 1990. These have the later 215-hp version of the S14 engine. |
|
How many of each version were produced?
BB01 (ECE, non-catalyst): 136 produced from 06/88 through 09/88 & from 04/89 through 06/89
BB05 (ECE, catalyst/195 hp): 174 produced from 07/88 through 09/88 & from 03/89 through 06/89
BB05 (ECE, catalyst/215 hp): 476 produced from 03/90 through 06/91 |
|
|
|
| Drivetrain |
|
How is the E30 M3 convertible mechanically different from the hardtop version?
Aside from the structural reinforcements fitted to all E30 convertibles, the E30 M3 convertible is mechanically identical to the hardtop. |
|
|
|
| Chassis |
|
How is the E30 M3's chassis different from that of the closed version?
The E30 M3 convertible uses slightly different springs and shocks to compensate for the car's added weight (increased by almost 400 pounds over the coupe). The suspension, steering, brakes, wheels and tires are otherwise identical to those of the E30 M3 coupe. |
|
|
|
| Cosmetics |
|
How is the E30 M3 convertible cosmetically different from that of the sedan?

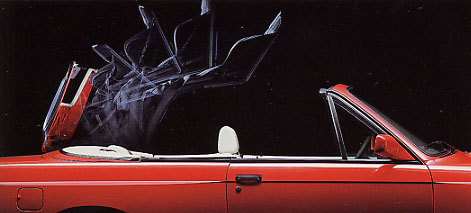

The E30 M3 convertible shares most of the coupe’s body panels, save for the trunk lid, which is a stock E30 convertible item and is not equipped with a rear spoiler. The convertible top is also identical to the one fitted to the regular E30 models and is power-operated as standard. |
|
How is the E30 M3 convertible's interior different from that of the sedan?
Like the closed car, the E30 M3 convertible's interior features sport seats, an M steering wheel (in one of two versions) and the M instrument cluster. The convertibles were also fitted with the "M3" door sill plates used on the M3 Evolution models. Cars equipped with optional leather upholstery have the M tri-color stripes on both front and rear seats, as well as unique door panels with diagonal pleating. |
|
What items were optional on the E30 M3 convertible?
The E30 M3 convertible was generally equipped with more standard features than the closed car. All were fitted with power windows and a power-operated folding soft top. The standard E30 M3 options were all available, as was a removable hardtop with rear window defroster and an extended leather interior including leather on the center console, door panels and door pulls. A number of special-order features not found on the usual option list (phone, fax, suede interior trim, leather dashboard, etc.) could also be requested due to the model's hand-built assembly. |
|
|
|
| Special Versions |
|
Were there any special versions of the E30 M3 convertible?
There were no official special editions of the E30 M3 convertible. However, one example (VIN EB85020) has now been confirmed to have been fitted by BMW Motorsport with a 220-hp Evolution II motor. It remains unclear if this upgraded engine was fitted to the car during initial assembly or soon afterwards, though it is more likely the latter case. |
|
|
|
|
|
|
|
|
|
|
|
|
Color and Upholstery Selections
The following chart lists all regularly available paint colors for the E30 M3 convertible.
| PAINT NAME |
PAINT CODE |
MODEL AVAILABILITY | PRODUCTION PERIOD |
| Diamond Black metallic |
181 |
BB01, BB05 | 06/1988 through 06/1991 |
| Alpine White II |
218 |
BB01, BB05 | 06/1988 through 06/1991 |
| Misano Red |
236 |
BB01, BB05 | 06/1988 through 06/1989 |
| Nogaro Silver metallic |
243 |
BB01, BB05 | 06/1988 through 06/1989 |
| Sterling Silver metallic |
244 |
BB05 | 03/1990 through 06/1991 |
| Macao Blue metallic |
250 |
BB01, BB05 | 06/1988 through 06/1991 |
| Brilliant Red |
308 |
BB05 | 03/1990 through 06/1991 |
| Jet Black |
668 |
BB05 | 03/1990 through 06/1991 |
The following chart lists all regularly available upholstery colors for the E30 M3 convertible.
NOTE: Black extended Nappa leather and Silver extended Nappa leather were also available in conjunction with Nappa "Textil Webstruktur" leather (Option 785) starting from 3/90 production.
| UPHOLSTERY NAME |
UPHOLSTERY CODE |
MODEL AVAILABILITY | PRODUCTION PERIOD |
| Anthracite cloth |
0304 |
BB01, BB05 | 06/1988 through 09/1988 |
| Silver cloth |
0305 |
BB01, BB05 | 06/1988 through 09/1988 |
| Anthracite Motorsport cloth |
0344 |
BB01, BB05 | 06/1989 through 06/1991 |
| Silver Motorsport cloth |
0345 |
BB01, BB05 | 06/1989 through 06/1991 |
| Black extended Nappa leather |
0226 / 0318 |
BB01, BB05 | 06/1988 through 09/1991 |
| Silver extended Nappa leather |
0227 / 0319 |
BB01, BB05 | 06/1988 through 06/1991 |
| Natur extended Nappa leather |
0231 / 0320 |
BB01, BB05 | 06/1988 through 06/1991 |
Lotus White extended
Nappa leather |
0462 |
BB05 | 05/1991 through 06/1991 |
|
|
|
|
|
|
|
|
|
|
|
|
